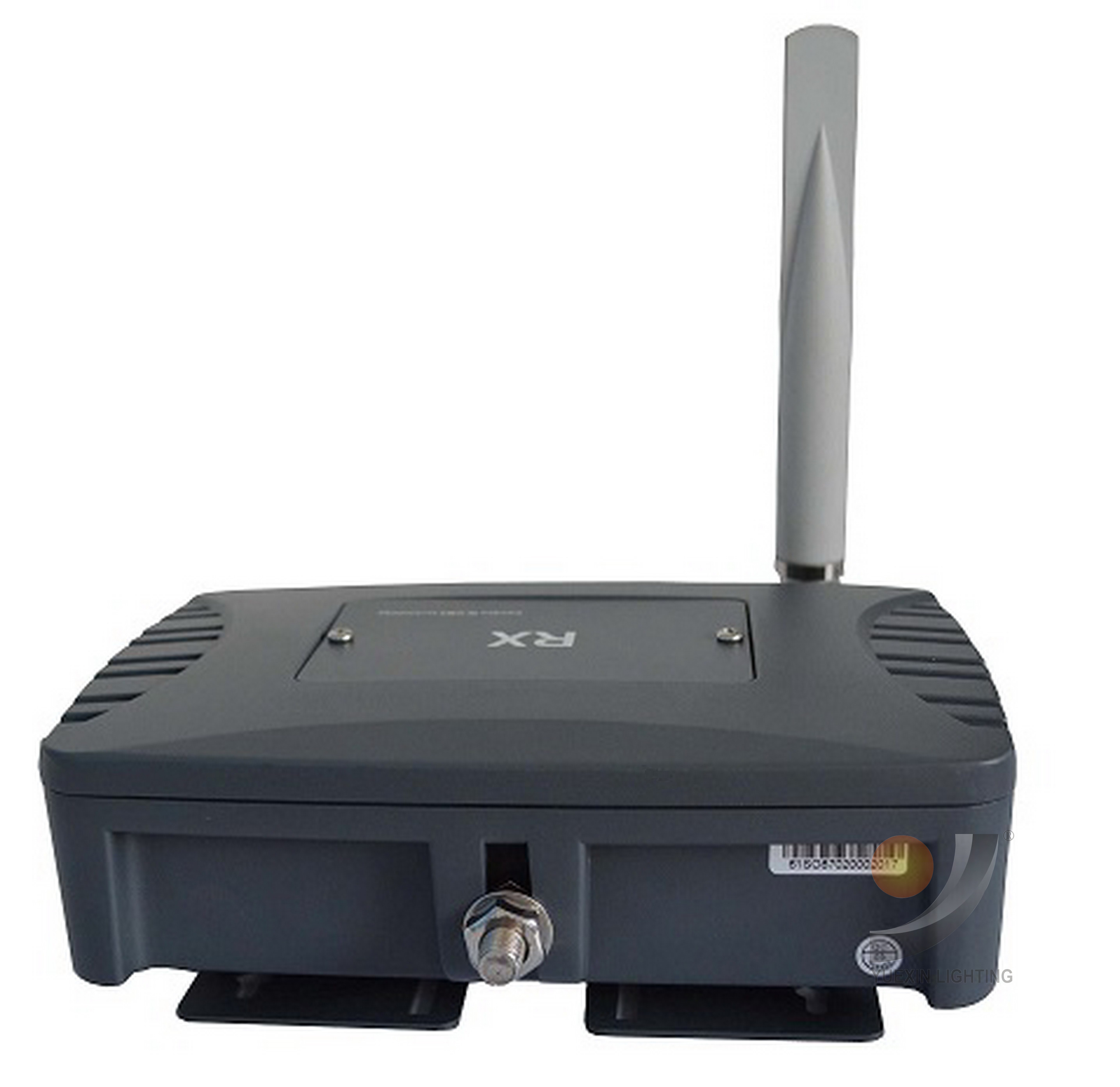

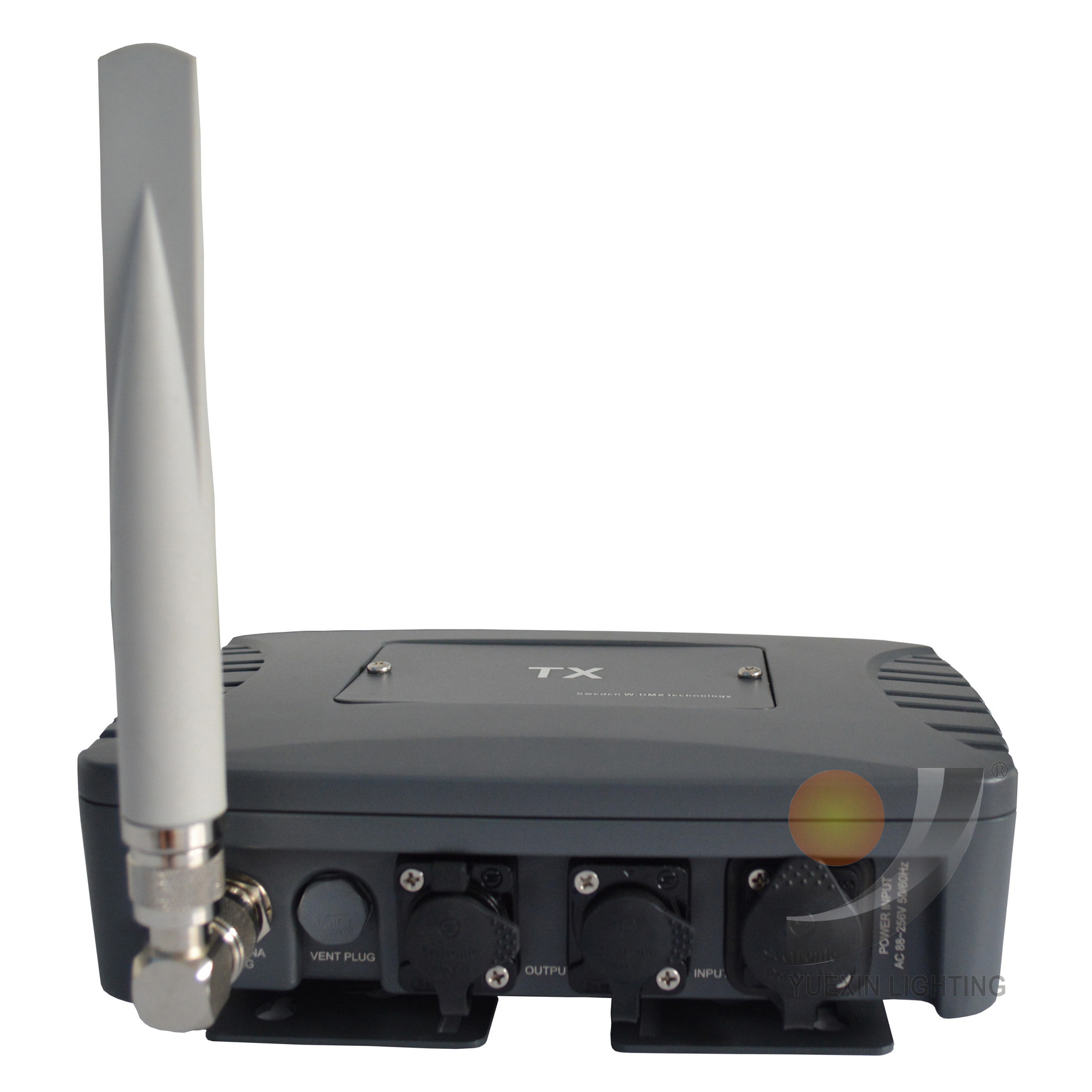

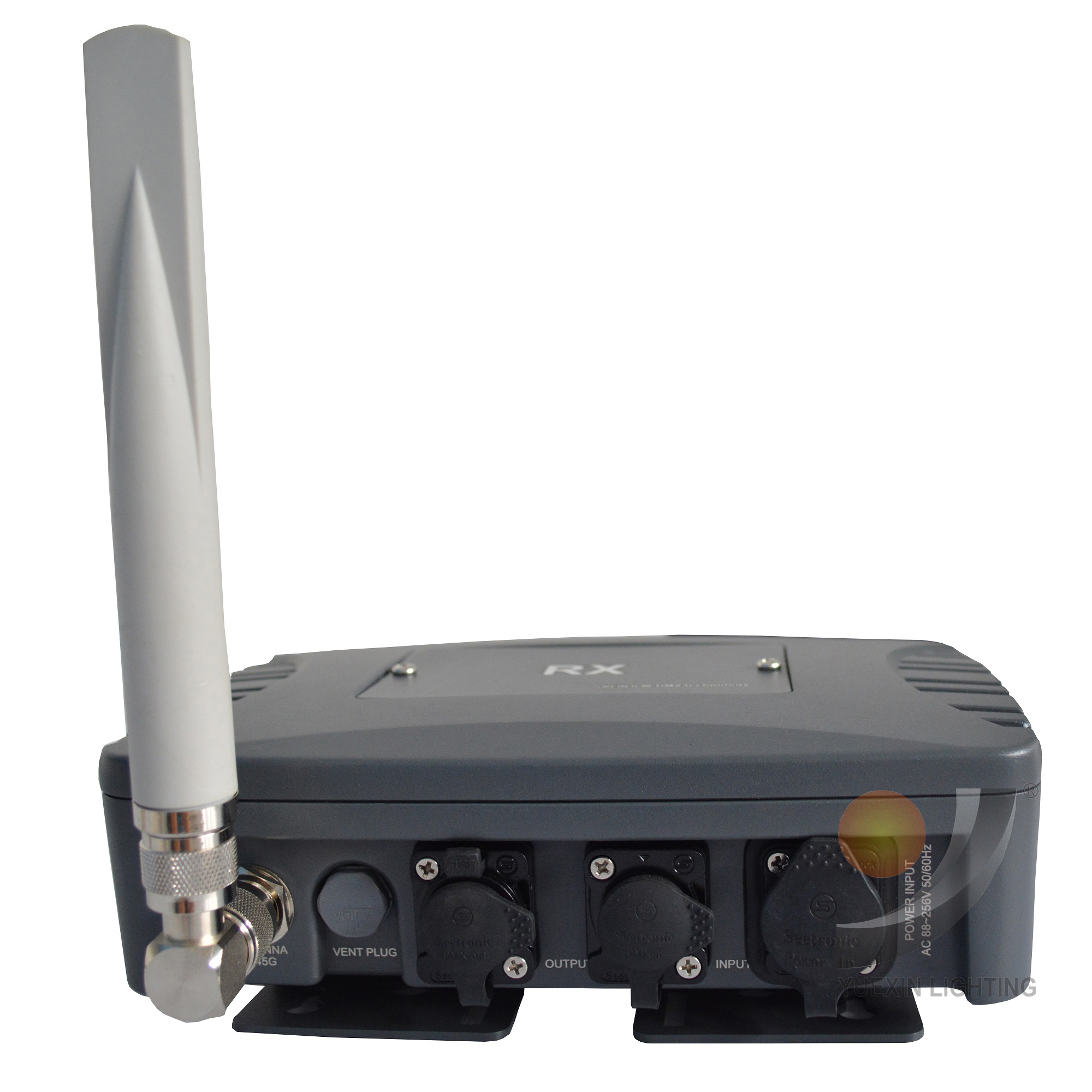

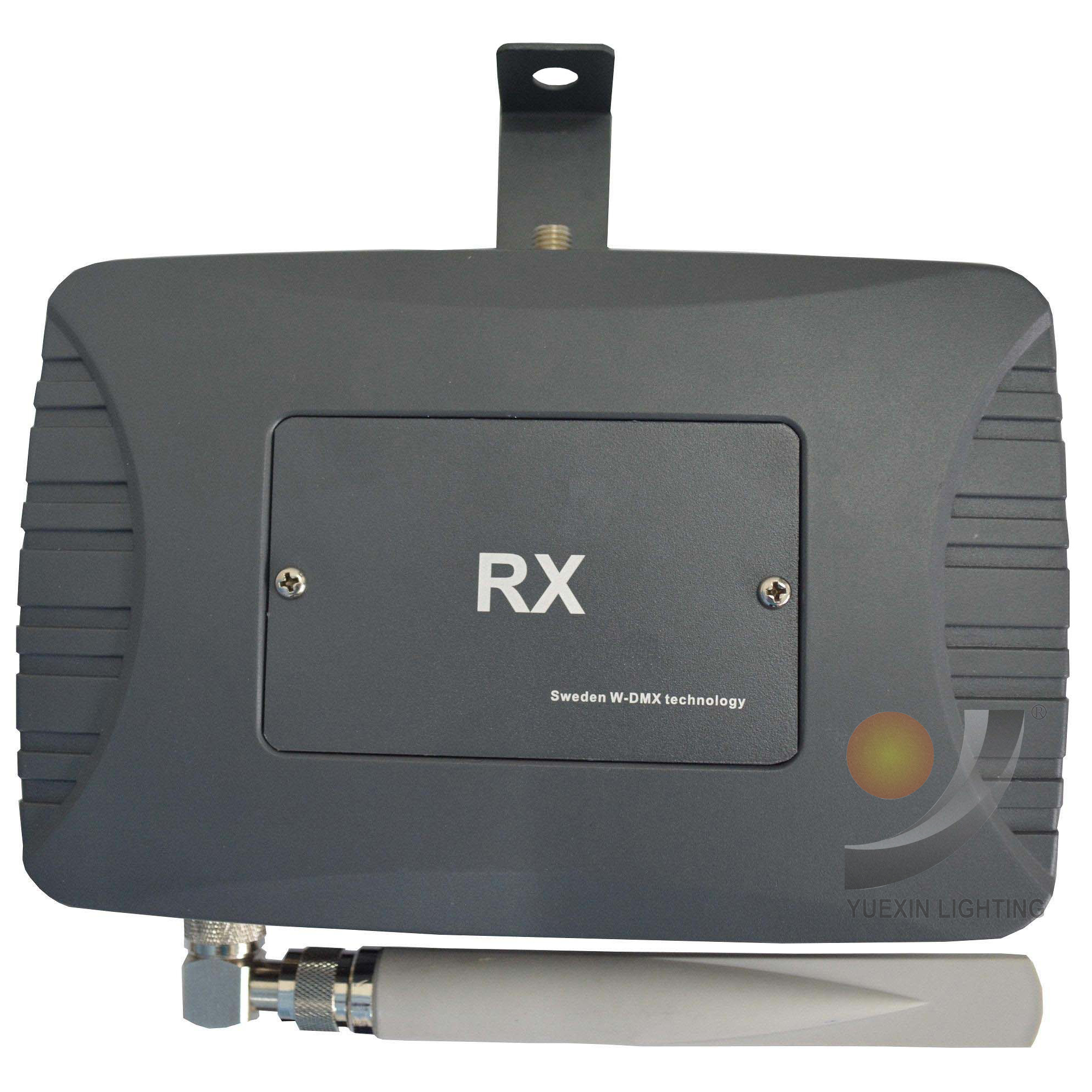

Aluminum Outdoor Waterproof Wireless Transceiver
Desription:
Adopting Swedish W-DMX transceiver technology
DMX wireless system is match with any channel
DMX512 controller and lighting Speedy transmit, Autocorrect and No disturbance
One-to-one or one transmitter to many receivers
Several transmitters can be installed at same place
Professional and un-replaceable W-LAN product
for convenient use to control as much as maxi-Mum lighting units you need
Cast aluminum material, weatherproof, UV resi-stant, easy to use, to learn and operate
Technology parameter
Transmit power:20～26.4DBM
free-lead solder
Transmit distance:500M(Visible distance)
Frequency:2403M～2479MHz
AC input:88～256V 50/60Hz
Dimension:225x150x80MM
Net Weight: 2.0kg
Antenna: N-head 5DB antenna , high gain&low
cost with long transmit distance.
Up to CE standard, UL standard and GB 7000.15-2000 standard
