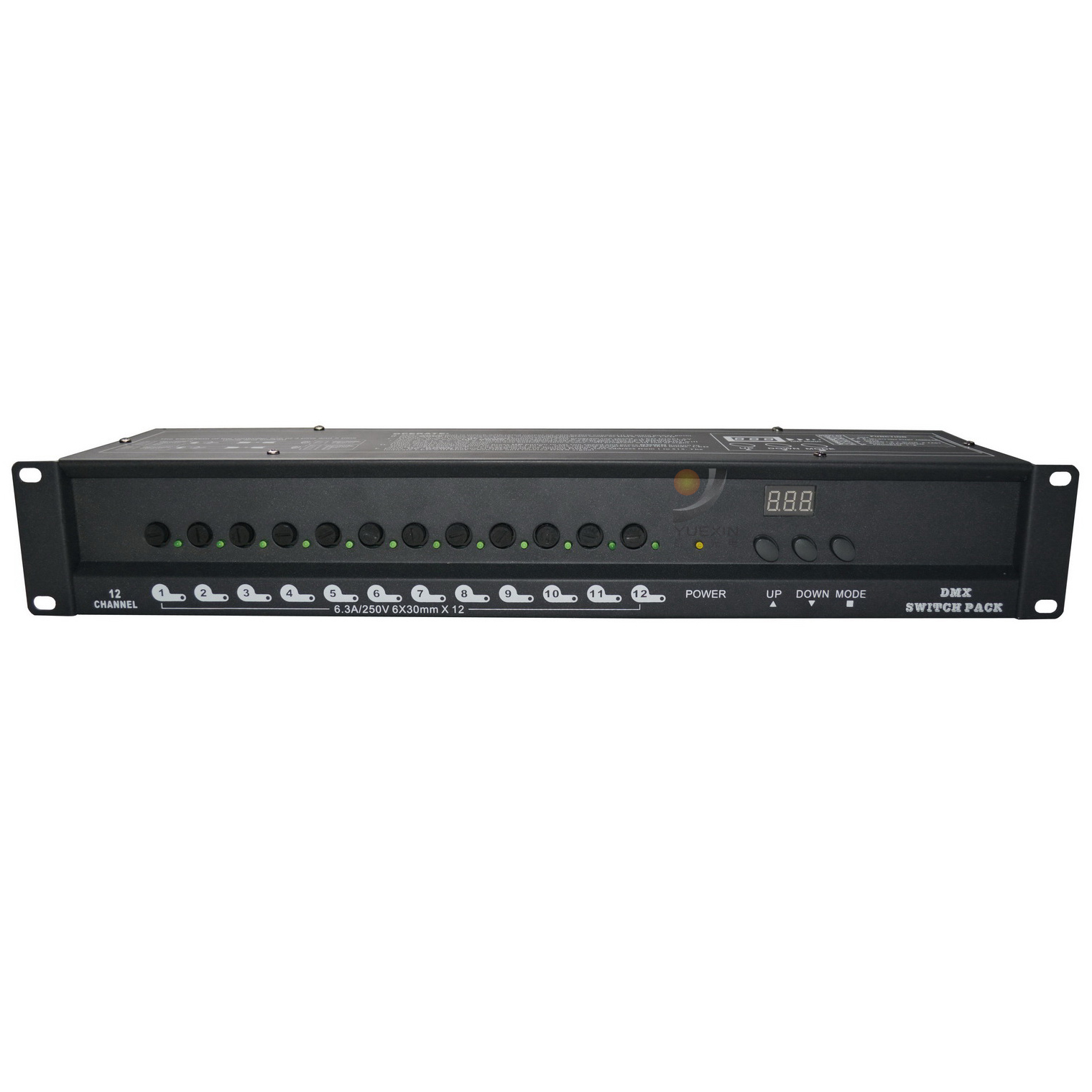

DMX switch box
Desription:
DMX512/1990 Standard
12 channels switch output with Triac
Switch output feature: DMX channel value 0-126=OFF, 127-255=ON
Silicon bidirectional thyristors and zero-crossing triggering
LED indicators for each channel
Over current protected with rapid fuse
Channel output: 5A per channel, 16A total
There are eight chase program inside and the speed of these chase program can be selected

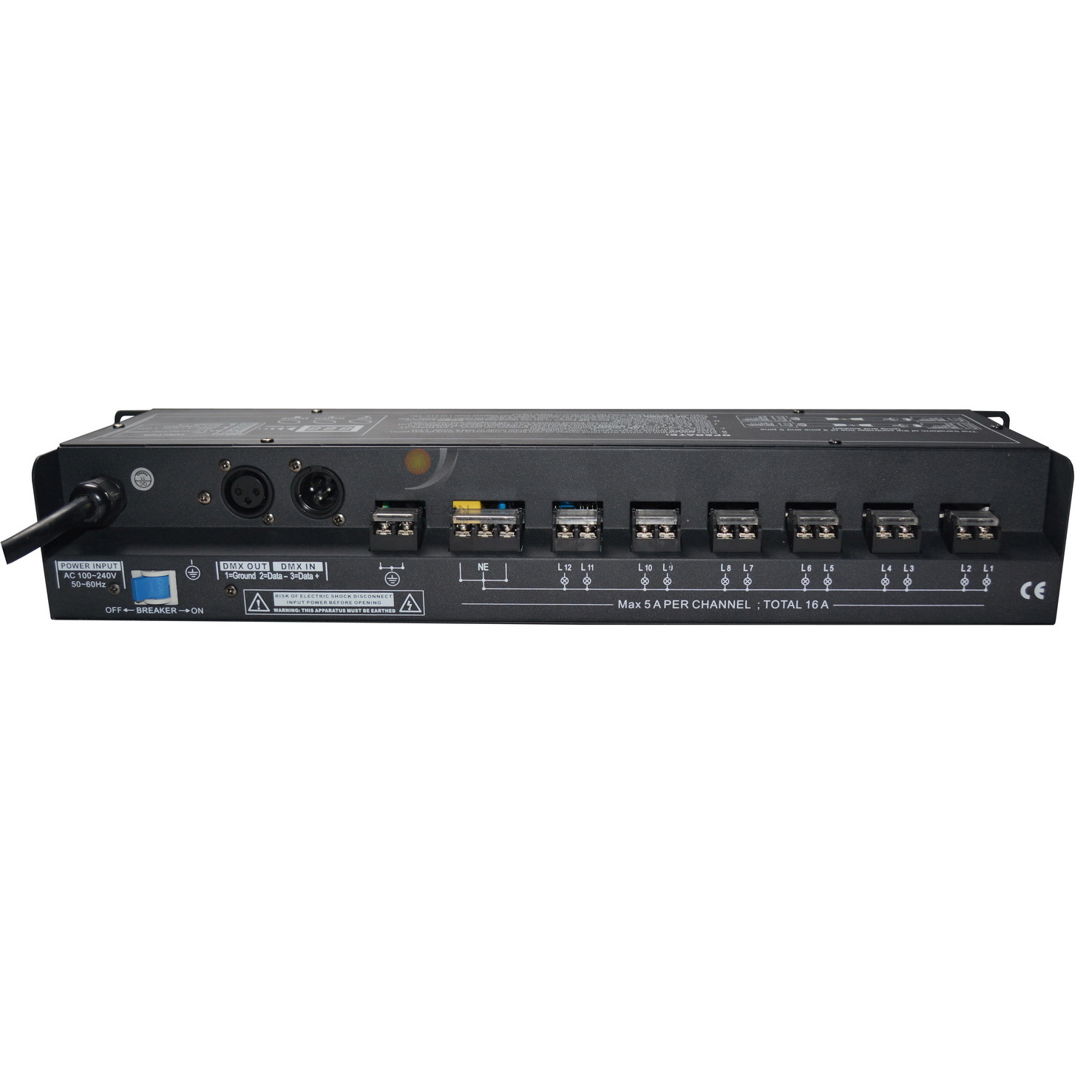

DMX input connector: XLR-D3M
DMX output connector: XLR-D3F
Power supply: AC 100-240V 50/60Hz
Dimension: 480mm×146mm×74mm
Net Weight : 2.2kg
Model: YX-CL1306
