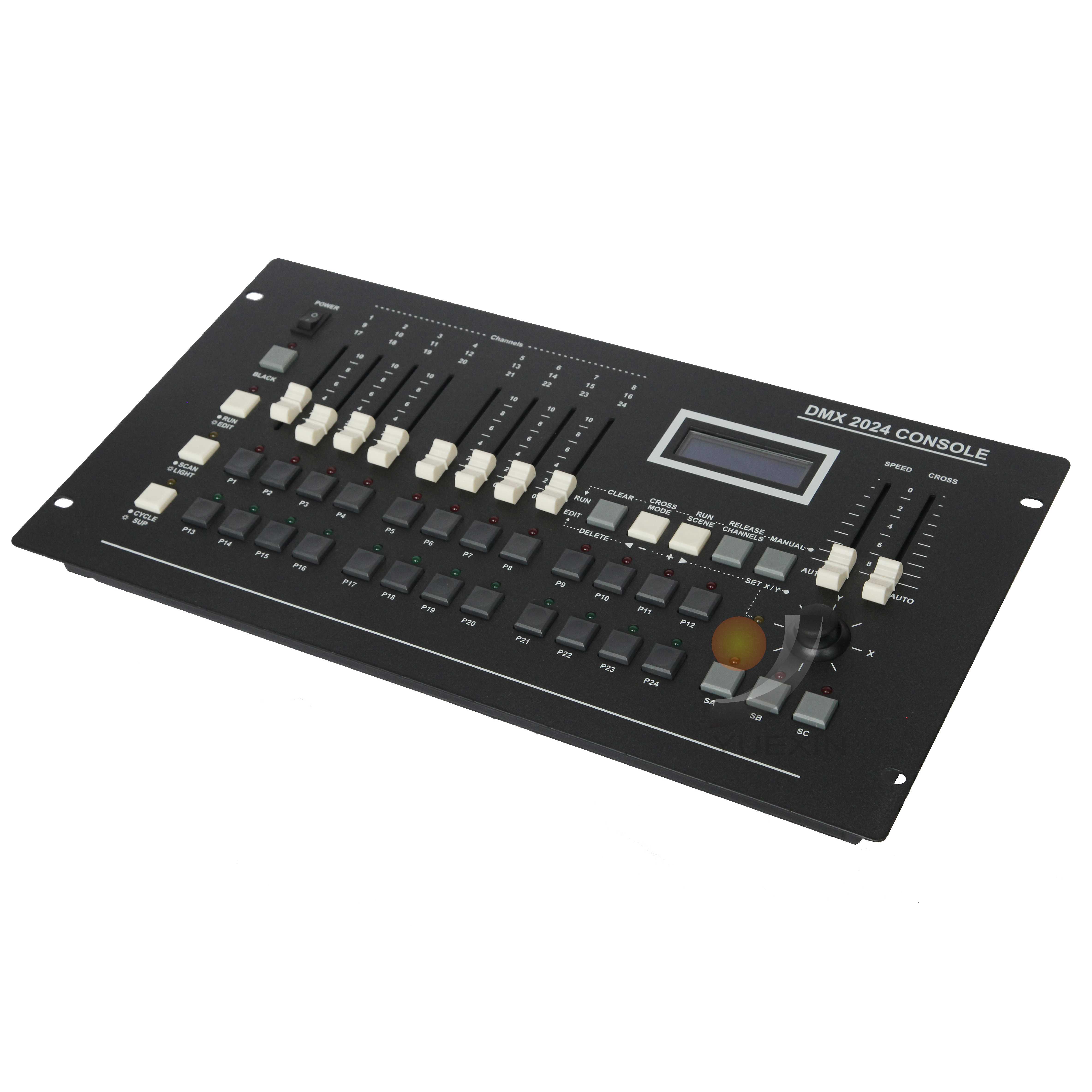

DMX 2024 console
Desription:
DMX512/1990 Standard 504 channels
LCD display with backlight
Up to 20 scanners may be connected with a
maximum of 24 channels each 24 Dimmer
channels
8 slider for manual control of channels
Assignable joystick for ease of movement
24 chases run in circularly, Max 40 steps each
chase
Can run 8chases simultaneously
960 chase steps
Range of cross time: 0s-25.5s
Range of speed time: 0.1s-25.5s
Each chase speed and cross time can be saved
automatic
512K high capacity memory card
The Data auto-saves

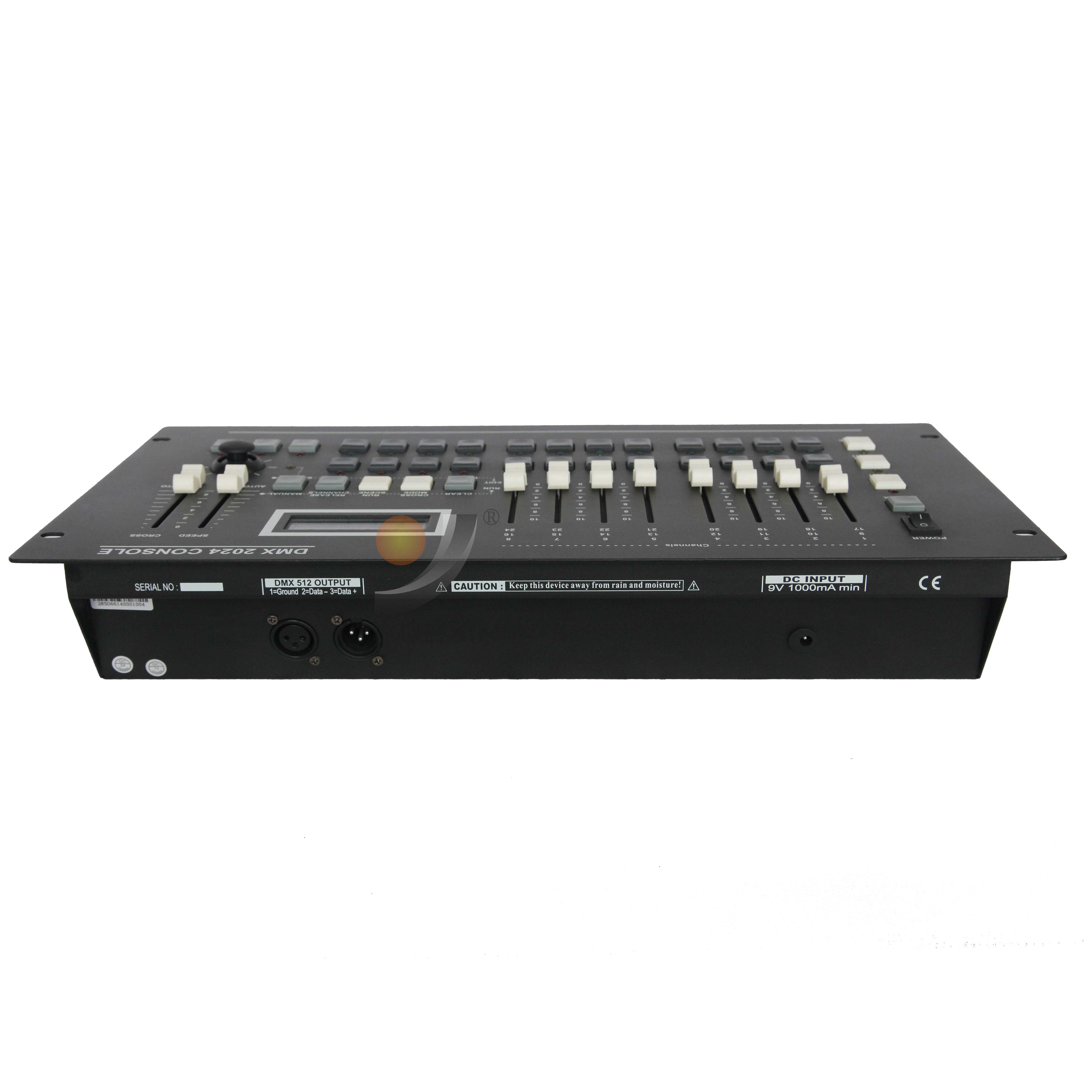

DMX signal output connector: XLR-D3F
Power supply: DC9V 1000mA
Dimension: 482mm×250mm×85mm
Net Weight: 3.8Kg
Model: YX-CL1328
