15W RGB Wedding Laser Light
Description:
Features
1.Full pure diode laser with more stable performance and longer working life. Diode solid-state (DSS) laser is that when power on, the diode will have laser output directly. It can work properly between -30°C and 40°C.
2.Made of analog laser modulation. Users can dimmer the laser brightness linearly to makes the laser light more colorful.

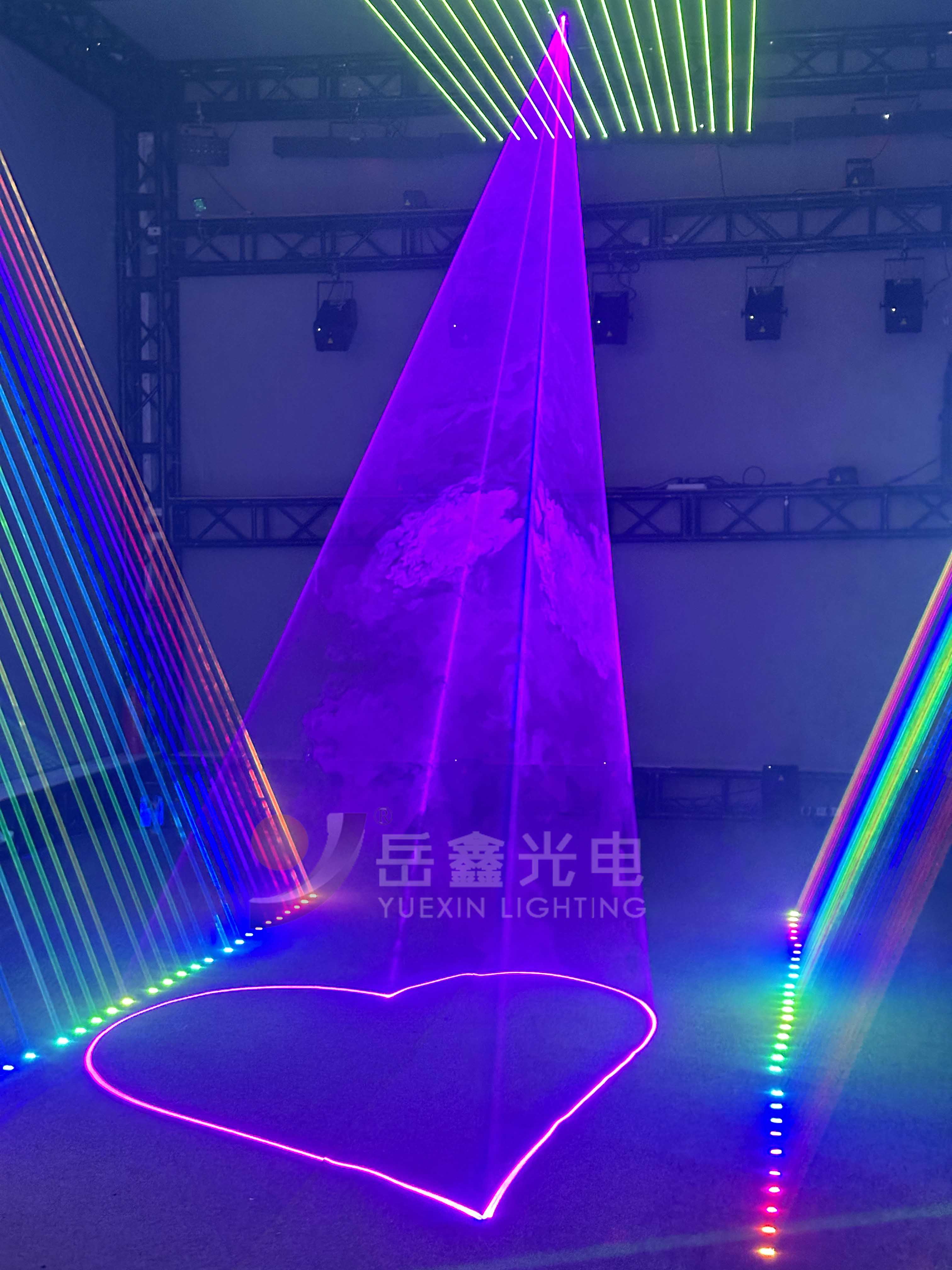

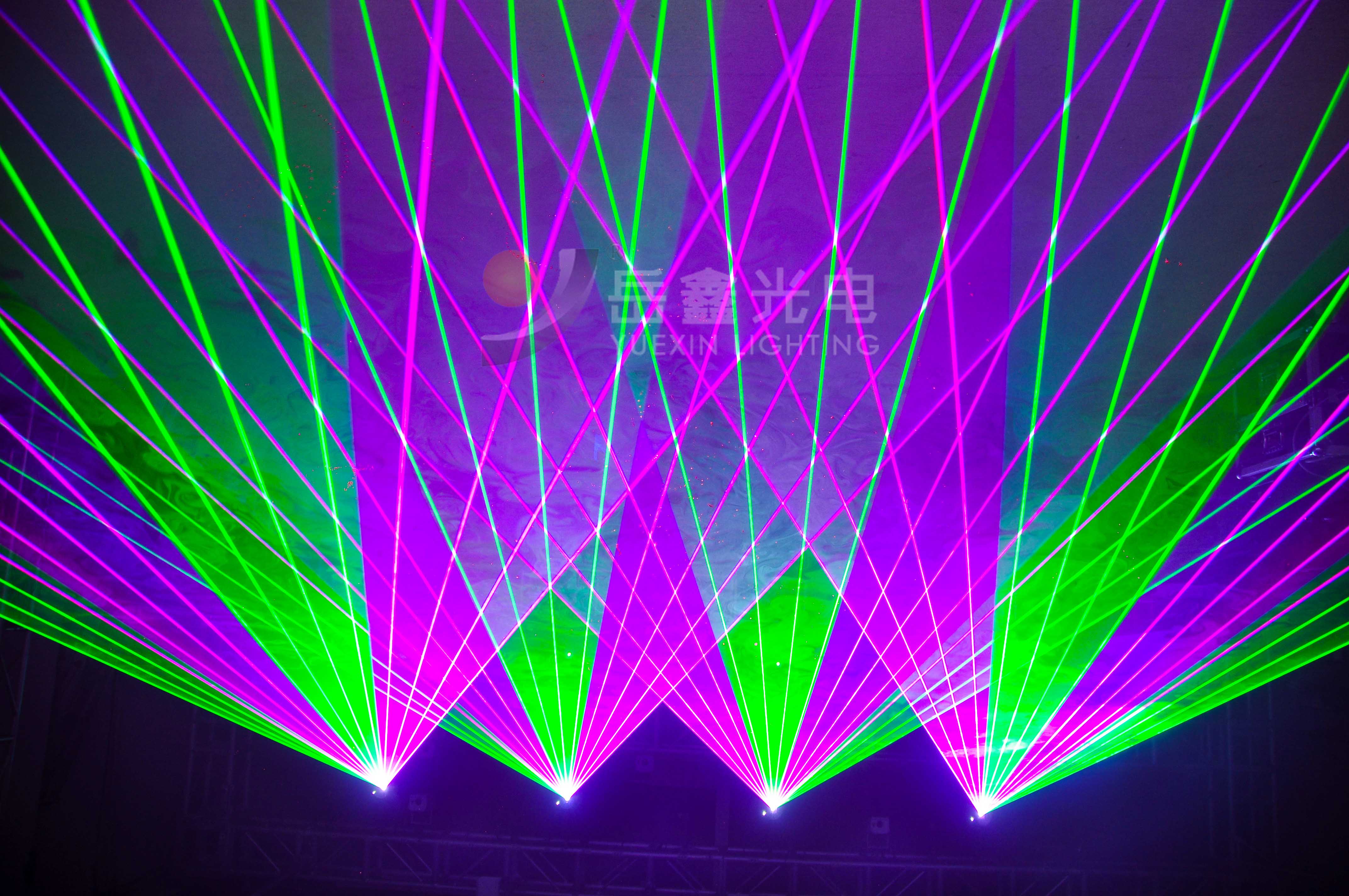

3.Graphics & Effects: Beam show and animated graphics show patterns.
4.TF Card: 8GB, for storage build in program and downloading program.
5.Safety intelligent: PC control mode will shut off laser automatically without trigger signal. The scanner failure protection will shut off the laser signal automatically, so as to avoid the single beam coming out.
6.Applicable for all kinds of large-scale outdoor performances, outdoor lighting projects.
Technical Specification
Voltage: AC90~250V/AC, 50HZ/60HZ
Rated Power: 300W
Waterproof Level: IP51
Work Environment: Indoor, -30 °C ~40 °C
Scanner:
The highest quality of optical scanner, high speed and high precision, high stability and long life design.
40KPPS ILDA @8°. Max scanning angle is 50°. Signal input voltage ±5V
XY Mirror 8*14mm, maximum accommodate laser spot: 5.6 (W)*5.6(H) mm
Laser: RGB analog modulate, 30KHZ frequency
AL15RGB: Red laser 4000mW @ 638nm. Green laser 4000mW @ 525nm. Blue laser 7000mW @ 440nm
Beam Diameter<5.5mm, Divergence<1.3mrad
Working Modes: ILDA mode (PC Control), DMX512 (18 CH/25CH), PRG(TF card program), ILD(TF card program), SOUD(Sound Active) Mode, AUTO Mode, Outdoor Mode, Master/Slave
TF Card Play Program Format: .ild laser show document
Safety Configure: Security protection, Laser key switch, laser remote interlock, SFS Control(scanner fail safety control ON/OFF), flying rings bolt
Interface: 3 pins XLR jack for DMX, DB25 and RJ45 interface for PC control
Machine dimension: 355(L)*220(W)*185(H)mm
Machine Weight: 12.2Kg
Flightcase(1 in 1): 472*346*252mm
G.W: 19KG
