380W Beam Moving Head Light

PRODUCT SEREIS



Description:



Power supply: AC100-240V, 50/60Hz
Total power: 600W
Bulb model: Phoenix Bubble 380W
The luminous flux is 7950lm, and the color temperature can reach 8500K
Ballast: Electronic Inductive Ballast
Control mode: DMX512/WMDMX/self-propelled
Channel: 16 channels
Beautiful dot matrix display with four light touch switches, capable of reversing 180 ° display
Color palette: A color palette, each consisting of 14 color tiles+white, 6 colorful tiles, rainbow effect
Adjustable rotation speed, bidirectional flowing effect and rainbow effect. Pattern disk: Fixed pattern disk,
10 fixed patterns+4 glass images (14 pattern effects+white light)
Prism: 48 honeycomb prisms, 12 prisms, double prisms can be stacked and rotate independently in both directions, with adjustable rotation speed.
Focusing: Linear focusing, from near to far. Equipped with atomization function and adjustable atomization speed.
0-100% mechanical dimming, supporting mechanical strobe and adjustable strobe effects, supporting strobe macro function, mechanical strobe is 1-12 F.P.S.
A color palette, each consisting of 14 color patches+white, with adjustable rotation speed, bidirectional flowing effect and rainbow effect
Adopting a photoelectric reset system, it can automatically retrieve the reset in case of accidental misoperation
Horizontal 540 °, 8Bit/16Bit fine tuned
Vertical 270 °, 8Bit/16Bit fine tuned
Equipped with horizontal and vertical fine automatic error correction functions.
Overheat protection
IP protection level: IP20
AC/DC switch power supply.
LCD display screen.

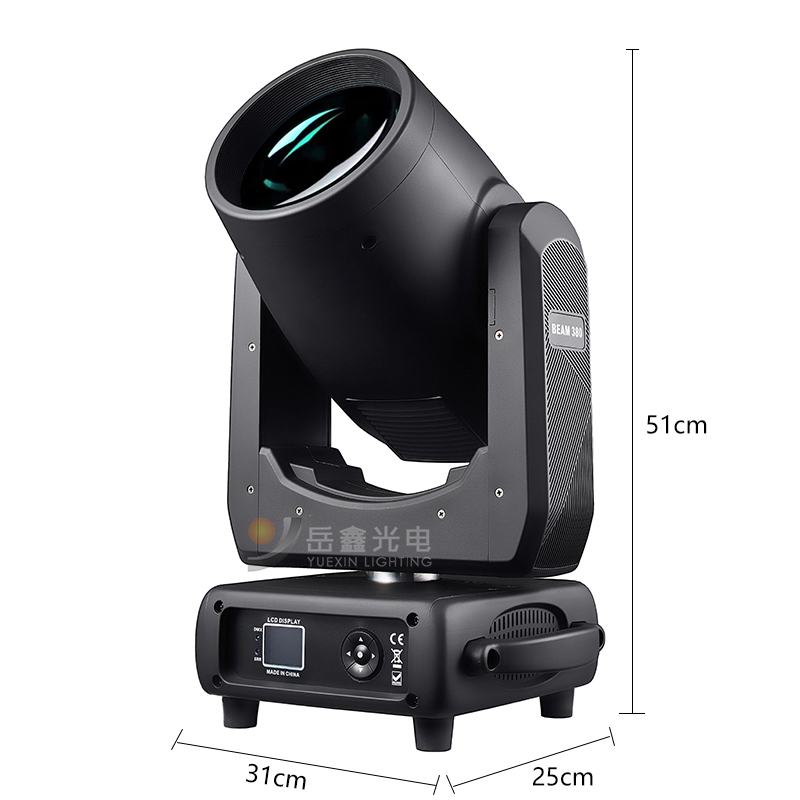

Size: 300 x 240 x 530mm
Net weight: 12Kg
Packaging size: 56 * 38 * 44cm
Gross weight: 15Kg

Model: YX-MH380D
