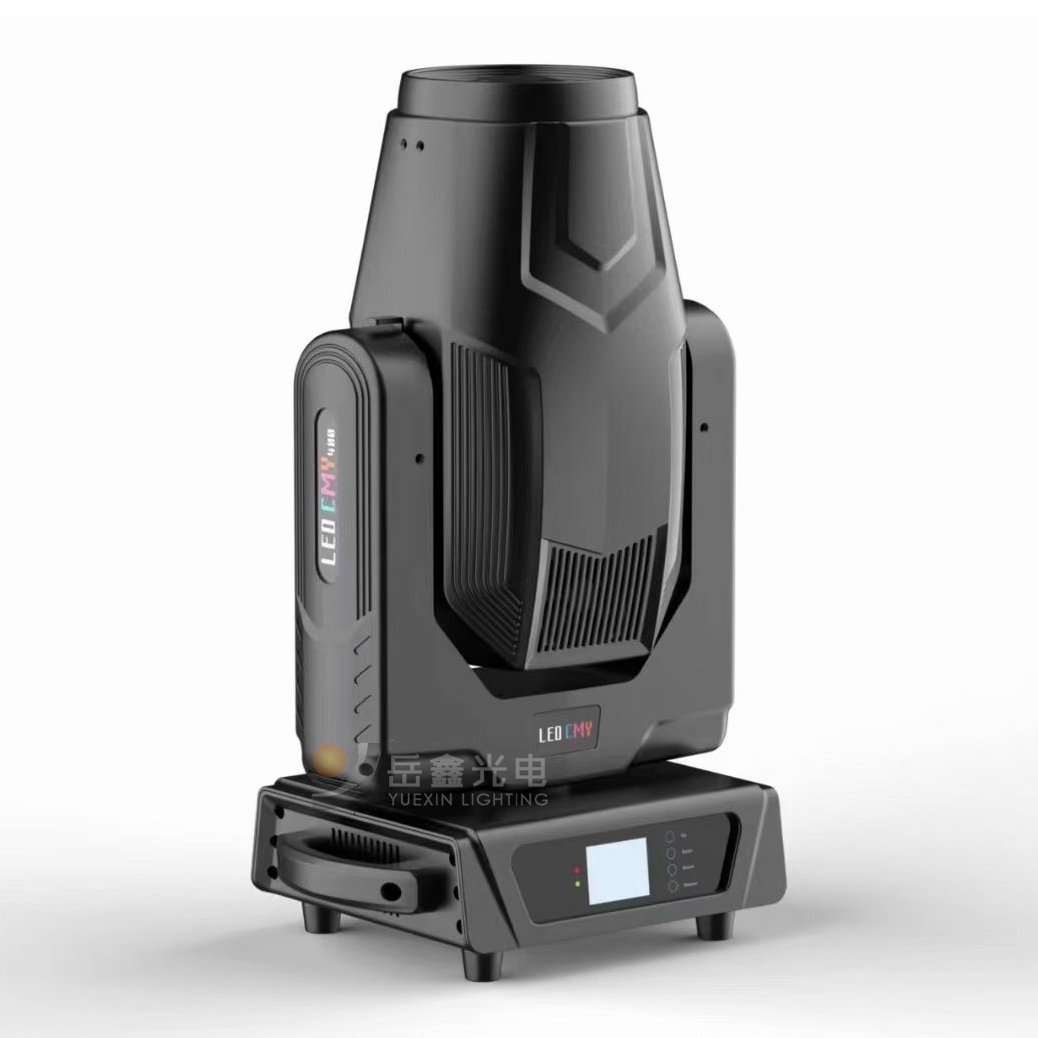

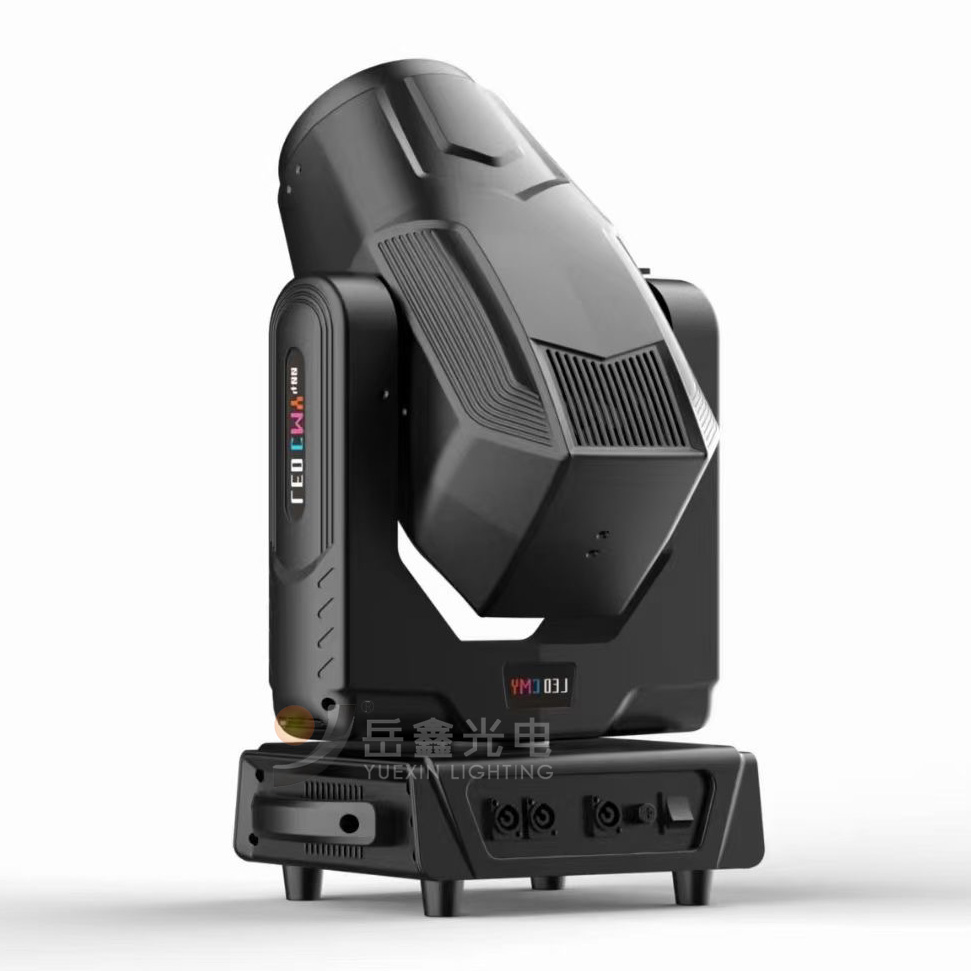

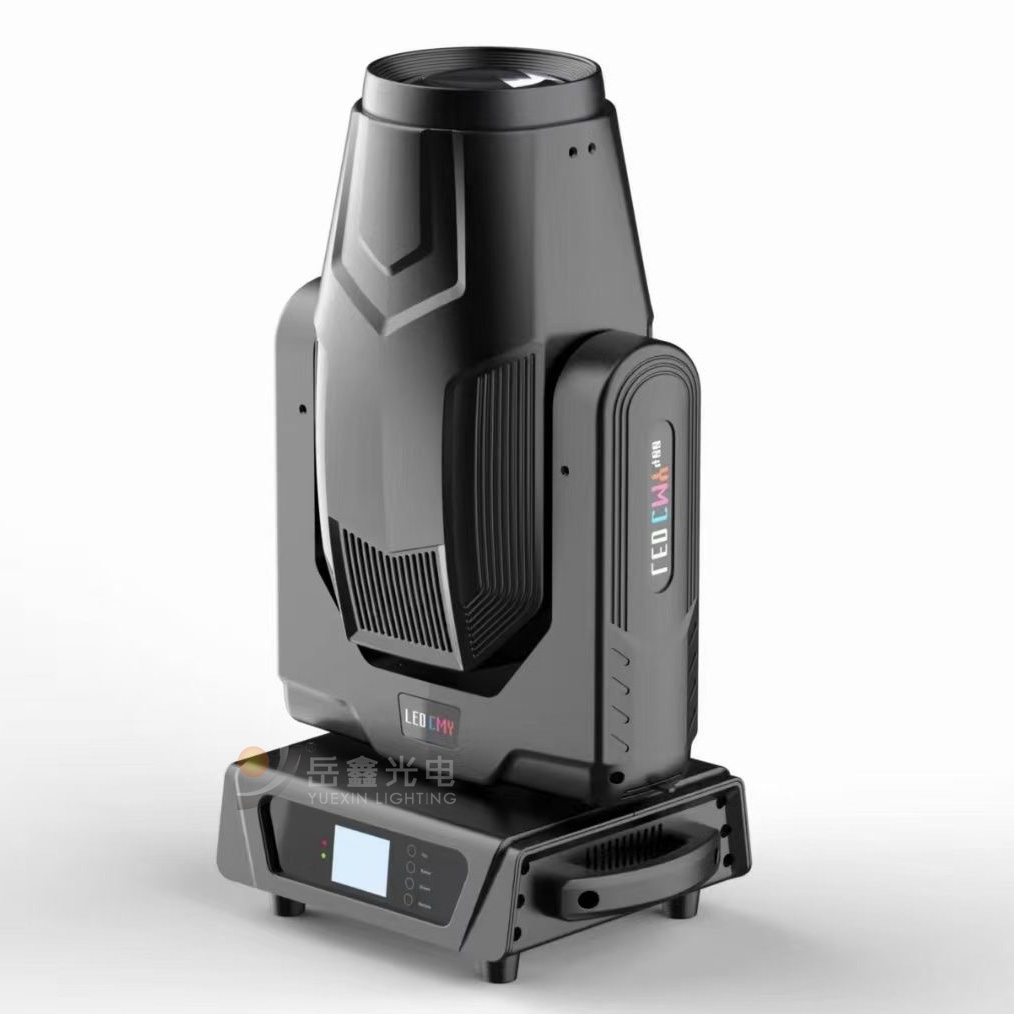

500W LED CMY+CTO SPOT Moving Head Light
Description:
Input voltage: AC100-240V 50/60Hz
Rated power: 580 W
Light source: High brightness LED 400W module light source
Light source life: 20000 hours
Light output aperture: 138MM
Channel mode :24 channels
Horizontal scanning :540 degrees (16bit precision scanning) electronic error correction
Vertical scanning: 270-degree (16bit precision scanning) electronic error correction
Dimming system :0-100% linear adjustment
Focusing system: linear adjustment from 4 m to 50 m
Atomization system :1 independent atomization effect, light spot soft and natural
Zoom Angle: Beam 2.7 ~ 40° Staining 4-40° Pattern 4-40°
High-speed stroboscopic: 0-30 times/second. Adjustable speed stroboscopic effect. Strobe macro function
Color: 7 colors + white light. Color Half color function
Color system: CMY+CTO color mixing system.
Fixed pattern: 12 fixed pattern + white light
Rotation pattern :7 glass patterns, each glass pattern can be turned forward and backward independently
Prism system: 3 prisms and 8 prisms, each prism can be rotated independently
Macro function: console reset function, self-walking mode, master-slave mode
Display mode: LCD display, button + touch dual operation mode
Control signal: international standard DMX512. With RDM function, online software upgrade, dial the address code
Cooling method: Use axial fan to strengthen cooling
Safety device: with electronic temperature control overheat protection, overheat system failure electronic temperature control automatic power off protection
Appearance material: high temperature resistant plastic
Working environment :-20 degrees, 40 degrees
Protection level: IP20
Net weight: 22.5KG
Product size: 38*27*65CM (L*W*H)
Bag size: 54*45*61CM
Gross weight: 25KG
Two dimensions of one container: 73*50*88CM
Gross weight: 77KG
