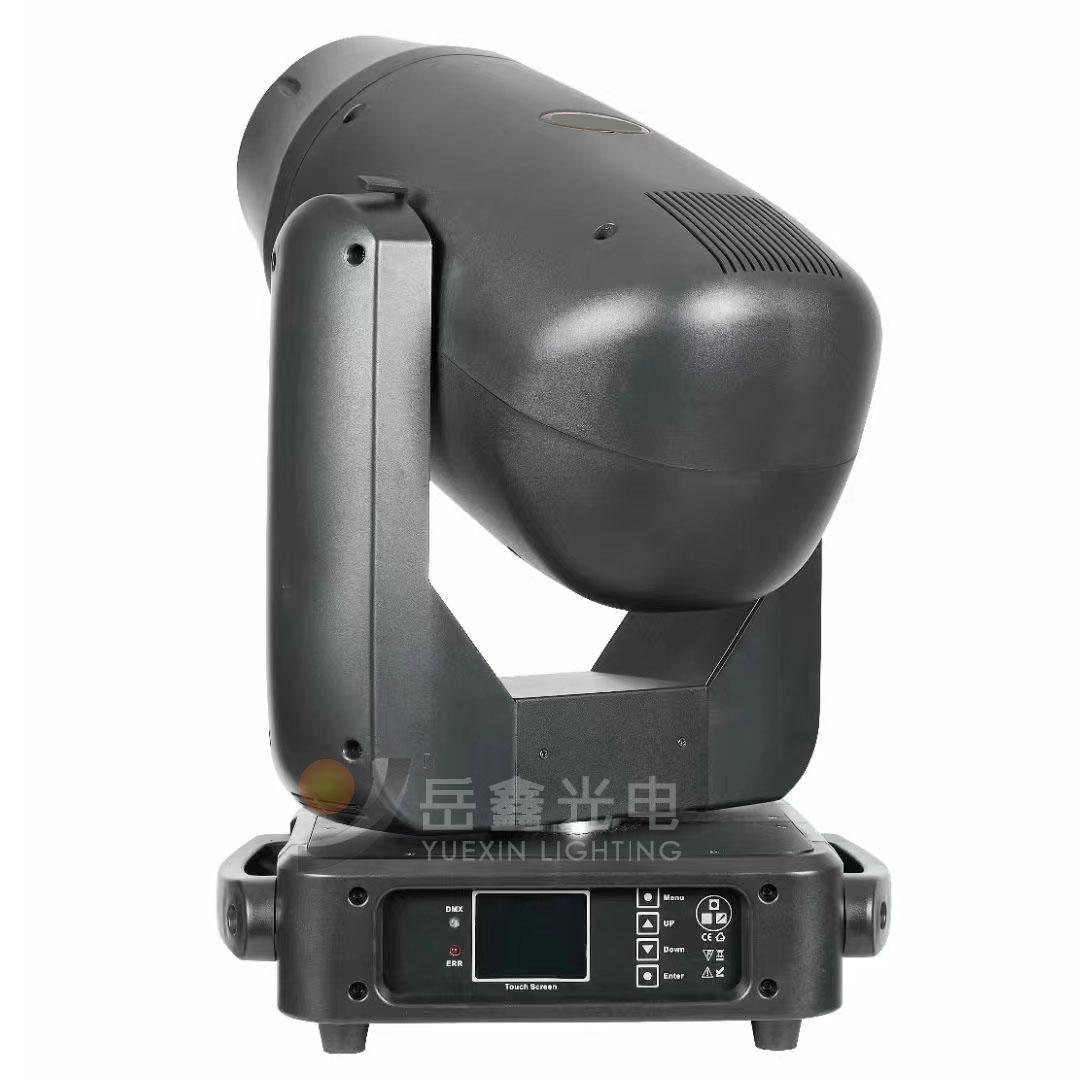

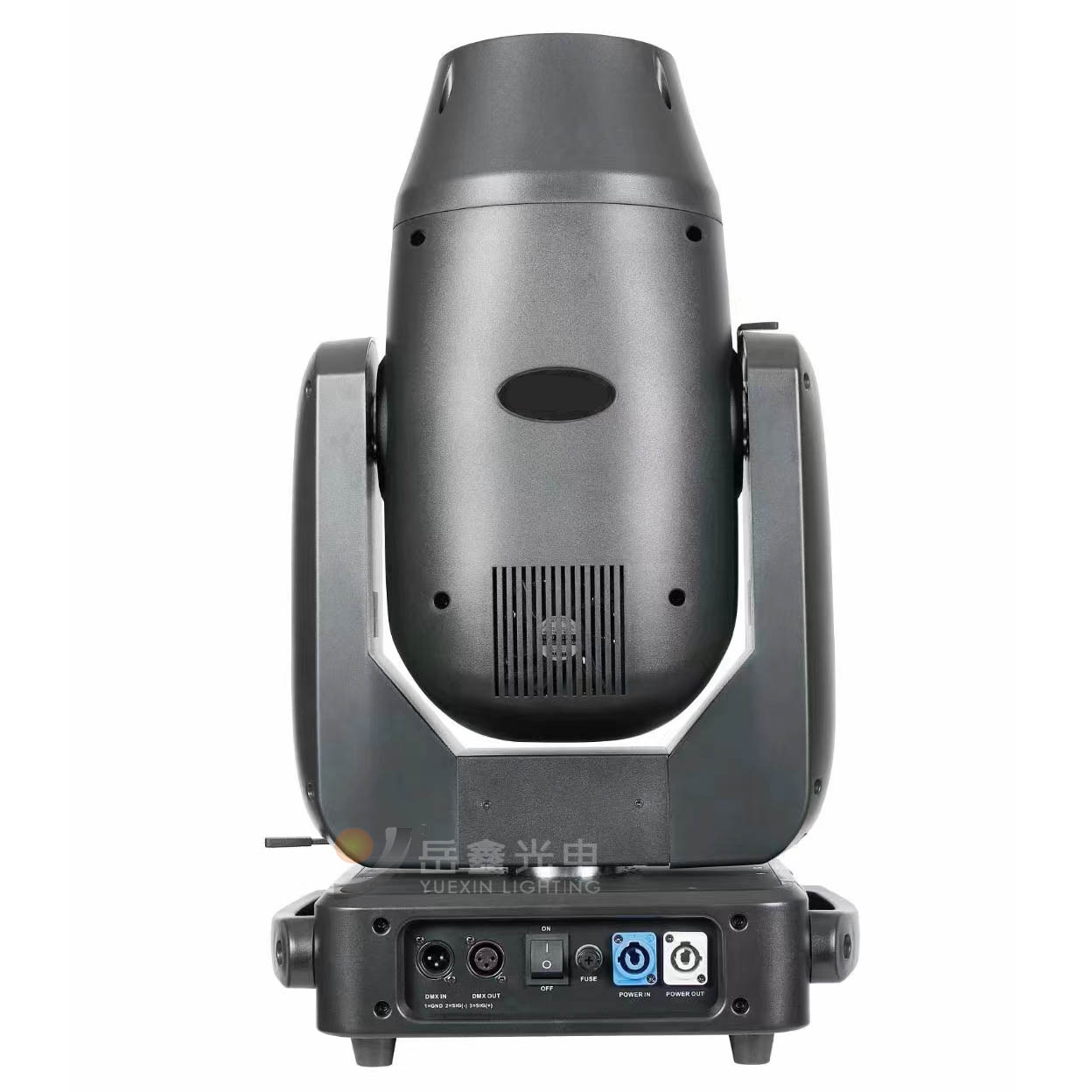

460W LED 3 IN 1 Beam Moving Head with CMY
Description:
Optical system
Light source: high-power 460W white light LED module
Optical angle: 4°-35°
Color temperature: 9000K
LED life: more than 20,000 hours
Color rendering index (CRI):> 70Ra
Color system
1 color wheel: 12 colors + white, color flow, color rainbow can be realized
CMY Promise Color Mixing
Pattern system
1 rotating gobo wheel: with 7 gobos + white light
It can realize the effects of rotation, two-way flow, and jitter
Gobo wheel can be positioned
1 fixed pattern plate: with 12 fixed patterns + white light
Effect configuration
Aperture: 5%-100% smooth adjustment
Dimming: electronic 0-100% linear dimming
Atomization: electronic 0-100% linear atomization soft light effect
Zoom: 4°-35° focus linear zoom
Fast stroboscopic, multiple stroboscopic mode selection, synchronization, equal split, pulse, random
Double prism: 1 4 prism, 1 8 prism can rotate independently in both directions
Shaking head parameters
Level 540°, accuracy 2.11°/step, fine-tuning accuracy 0.008°
Vertical 240°, accuracy 1.05°/step, fine-tuning accuracy 0.004°
Horizontal and vertical electro-optic reset system with automatic error correction
Control and programming
2 control channel modes: 21 DMX channels and 26 DMX channels
Protocol: DMX512
Menu display: 2.8-inch LCD touch screen + buttons, Chinese and English languages can be switched at will, fonts can be automatically displayed in reverse 180 degrees
DMX signal connection: three-pin XLR input/output
Electronic control technology
Intelligent energy saving, the LED light source will be automatically turned off when the light is not turned on (Dimmer is fully off)
Menu or console control lamp reset
Temperature electronic sensor detection
DMX channel level monitoring
Query lamp information through LCD screen
Intelligent fan speed control
XY axis three-phase motor drive
RDM data two-way transmission
Overcurrent, overvoltage, overheating protection
power supply
AC100-240V, 50/60Hz
Switching power supply
Input
